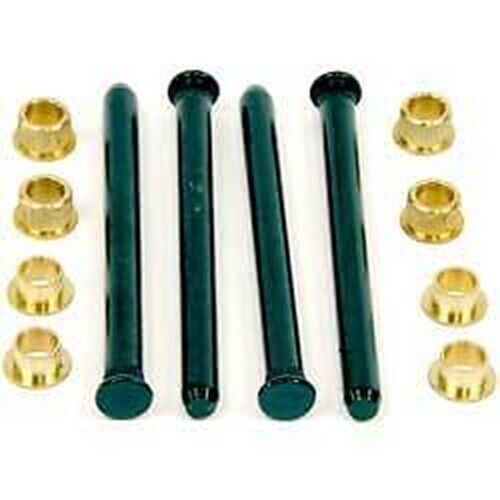

How to Install a Door Hinge Rebuild (Pin & Bushing) Kit: A General Guide
A door that sags, drops when opened, or is getting harder to latch is almost always worn hinge pins and bushings, not a bent hinge — which is good news, because a pin-and-bushing rebuild kit is a repair, not a replacement part. This is a general walkthrough of what the job involves; exact hinge style, pin sizes, and whether your door needs to come off the vehicle vary by make and model, so treat this as the overview and confirm specifics against your kit's instructions.
What's actually worn
Door hinges are typically a two-piece steel hinge held together by a pin, riding on bushings that wear down over decades of opening and closing. A rebuild kit replaces the worn pins and bushings so the original hinge halves — which are usually still structurally fine — pivot tightly again, rather than requiring a full hinge replacement.
Tools you'll typically need
- A way to support the door's weight during the job — a floor jack with a padded block, a door support stand, or a helper
- A drill and appropriately-sized drill bits (worn pins are often difficult to drive out without first drilling)
- A hammer and a pin punch set
- Penetrating oil, applied well ahead of time to pins that have been in place for decades
- Whatever fastener tools your door's hinge-to-body and hinge-to-door bolts require
1. Decide: on the car, or off
Some hinge rebuilds can be done with the door supported and still hanging on the vehicle; others are easier — or required, depending on hinge design — with the door removed entirely. Check your specific kit's instructions and your vehicle's service information for which approach applies before starting, since this affects what support equipment you need.
2. Support the door and remove the old pin
With the door fully supported so it can't drop once the pin is out, soak the hinge pin area in penetrating oil and let it sit. Worn pins are frequently seized or "mushroomed" at the ends from years of use — this is why drilling out the pin (rather than just punching it) is often necessary; the kit's instructions will specify the approach for your hinge style.
3. Clean up the hinge and install new bushings
Once apart, clean the hinge halves of old grease, rust, and metal shavings from drilling. Press or drive in the new bushings per the kit's instructions, and check that the hinge halves pivot freely on the new bushings before reassembly.
4. Install the new pin and check door alignment
Drive in the new pin per the kit's instructions (many kits include a specified pin length and a retaining method — a clip, stake, or peened end). With the pin installed, check that the door opens, closes, and latches correctly, and that panel gaps look even against the surrounding sheet metal. Minor gap adjustment is normal after a hinge rebuild and is usually done at the hinge-to-body or hinge-to-door bolts, per your vehicle's factory adjustment points.
5. Lubricate and recheck after a few weeks
Grease the new pin/bushing per the kit's recommendation, and give the door a few weeks of normal use before a final check — new bushings can seat in slightly as they break in, so a door that's perfect on day one is still worth a follow-up look.
Common mistakes to avoid
- Not supporting the door before removing the pin. A door dropping unsupported can bend the hinge or damage paint/sheet metal.
- Trying to punch out a seized pin without drilling or soaking first. This is the most common way to damage a hinge that was otherwise fine.
- Skipping the alignment check. A rebuilt hinge that's slightly misadjusted is a quick fix at the bolts — but only if you catch it before buttoning everything back up.
Hinge design differs enough between makes (and even between early/late years of the same model) that we won't guess at pin sizes or exact drill-bit specs here — your kit's included instructions are written for your exact hinge, and we're happy to help if something doesn't match what you're seeing on the car.
